amcQualipor

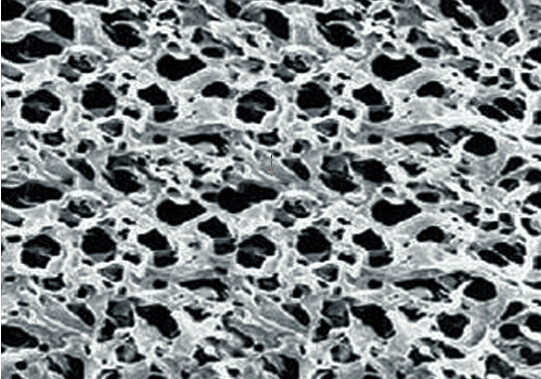

amcQualipor hydrophobic membrane is a versatile 100% high temperature resistant polyvinylidene difluoride membrane.  It is designed to provide strength, flexibility and chemical compatibility to meet the exact and demanding requirements of chemical filtration applications.

amcQualipor membrane is available in 0.1, 0.2 and 0.45 μm pore sizes. Produced with no wetting agents, it is an ideal cost effective alternative to polytetrafluoroethylene mem-brane to prevent moisture blockage in venting and gasfiltration.



Performance Advantages

  • High resistance to moisture for venting provides no moisture blockage
  • Better air flow rate than supported analogs permits faster pressure balance
  • Broad chemical compatibility for filtering harsh chemicals that detract other membrane
  • Materials can be used in wide range of chemical filtration

Features/Benefits

  • High porosity and throughputs to minimize filter change during batch processing
  • Versatile sterilizability to allow steam or autoclave sterilization
  • Biosafety to assure product application in pharmaceuticals




Materials of Construction
Membrane Material: Hydrophobic polyvinylidene difluoride
Nominal Pore Sizes: 0.1, 0.2 , 0.45 μm
Maximum Operating Temperature Water: 100°C (212°F)
Maximum Operating Temperature Air: 135°C (275°F)
Typical Weight: 2.5 mg/cm²
Typical Thickness: 0.08 mm (3.0 mils)
Extractables-Boiling Water: Trace
Sterilization: Provided non-sterile. May be autoclaveable and steam sterilizable if desired.
Minimum Bubble Point: 0.1 μm: 26 psi (1.8 bar) – IPA
0.2 μm: 16 psi (1.1 bar) – IPA
0.45 μm: 9 psi (0.6 bar) – IPA
Minimum Water Breakthrough: 0.1 μm: 56 psi (3.9 bar)
0.2 μm: 35 psi (2.5 bar)
0.45 μm: 19 psi (1.3 bar)
Typical Air Flow Rate: 0.1 μm: 0.9 lpm/cm² at 13.5 psi
0.2 μm: 2.1 lpm/cm² at 13.5 psi
0.45 μm: 3.2 lpm/cm² at 13.5 psi
Biosafety: Passes USP Class VI-121°C Plastics Tests

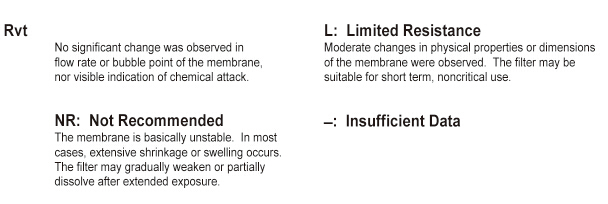

Qualipor Chemical Compatibility
Acids Acetic acid, glacial R
Acetic acid (90%) R
Acetic acid (30%) R
Acetic acid (10%) R
Hydrochloric acid, conc. (35%) R
Hydrochloric acid, 6N (20%) R
Hydrochloric acid, 1N (3.3%) R
Nitric acid, conc. (67%) NR
Sulfuric acid, conc. (96%) -

Alcohols Amyl alcohol -
Benzyl alcohol -
Butanol R
Ethanol R
Isopropanol R
Methanol R

Aromatic Hydrocarbone Benzene L
Xylene L

Bases Ammonium hydroxide, 6N (11.4%) L
Ammonium hydroxide, 3N (5.7%) -
Potassium hydroxide, 3N (15%) -
Sodium hydroxide, 6N (22%) NR
Sodium hydroxide, 3N (11%) NR

Esters Amyl acetate -
Butyl acetate -
Cellosolve acetate R
Isopropyl acetate -
Methyl acetate -

Ethers Ethyl ether R
Tetrahydrofuran -

Glycols Ethylene glycol R
Glycerol R
Propylene glycol R

Halogenated Hydrocarbons Carbon tetrachloride L
Chloroform R
Ethylene dichloride NR
Methylene choride R
Tetrachloroethylene NR

Ketones Cyclohexanone L
Methyl isobutyl ketone L

Miscellaneous Aniline R
Formaldehyde, 37% R
Formaldehyde, 4% R
Hexane, dry R
Kerosene R
Pyridine R

Oils Cottonseed oil R
Peanut oil R

Ordering Information
Product Number Description Packaging
QU010S1 0.1 μm, 20×20 cm sheet 25/pkg
QU010S2 0.1 μm, 26×50 cm sheet 25/pkg
QU010R1 0.1 μm, 26×300 cm sheet 1/pkg
QU010R01 0.1 μm, 50~200 m, linear length 1/pkg
QU020S1 0.2 μm, 20×20 cm sheet 25/pkg
QU020S2 0.2 μm, 26×50 cm sheet 25/pkg
QU020R1 0.2 μm, 26×300 cm sheet 1/pkg
QU020R01 0.2 μm, 50~200 m, linear length 1/pkg
QU045S1 0.45 μm, 20×20 cm sheet 25/pkg
QU045S2 0.45 μm, 26×50 cm sheet 25/pkg
QU045R1 0.45 μm, 26×300 cm sheet 1/pkg
QU045R01 0.45 μm, 50~200 m, linear length 1/pkg
