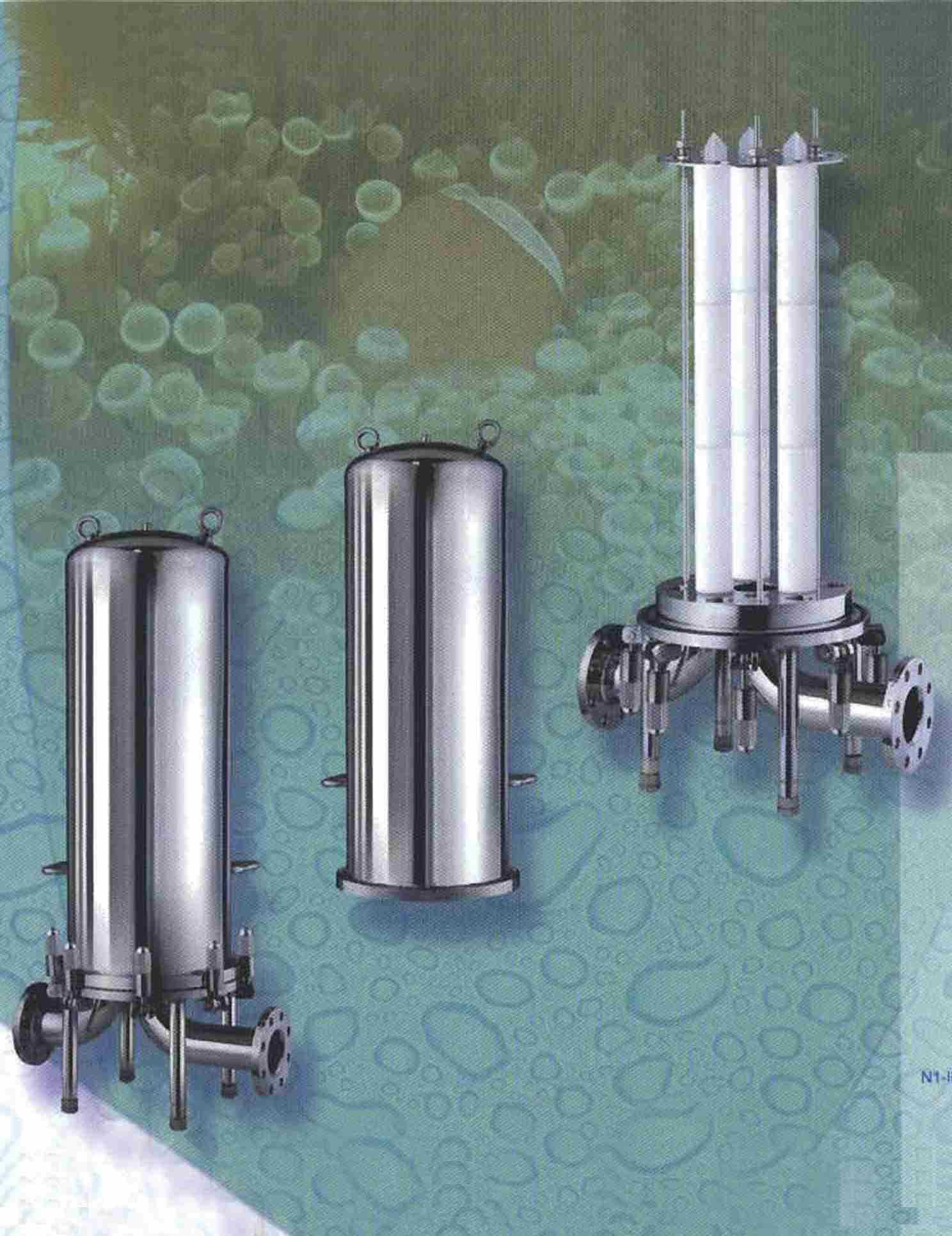

AMC offers Sanitary and Industrial housings using 304 and low carbon 316L stainless steel that sets the standard for high purity and performance. AMC housings are available with a variety of options for inlets, outlets, vents, drains, and plumbing configurations.
For added assurance of performance, all AMC stainless steel filter housings are electropolished. Electropolishing enhances cleanability by smoothing irregularities and thereby reducing surface area and improving overall resistance to corrosion and contamination.
Our stainless steel housings are designed for filtration and venting applications in pharmaceuticals, biologicals, food and beverage, microelectronics, and any filtration process requiring high-purity, non-reactive surfaces.
AMC also offers disc filter holders made of 304 and low carbon 316L stainless steel. The stainless steel disc holders are excellent for clarification and sterilization applications. They provide up to 15% greater filtration area than most competitive units. Recommended for filtration of products such as laboratory solvents, cell culture media, ophthalmics, pharmaceuticals, vitamins, make-up water, antibiotics, and photoresists.
Stainless Steel Disc Filter Holders
FEATURES:
* Constructed of 304 and low carbon 316L electropolished stainless steel for filtration of aggressive chemicals,
solvents, reagents, and solutions (gases and liquids).
* Offers higher flow rates and extending filter service life.
* Accepts 10 mm (3.8 in) to 30 mm (11.4 in) ID tubing for inlet and outlet connections.
Heavy Duty Stainless Steel Disc Filter Holders
FEATURES:
* Constructed of 304 and low carbon 316L stainless steel with electropolished surface under GMP and FDA guidance
for aggressive liquid and gas filtration.
* Can withstand maximum operating pressure of 0.8 Mpa.
* Designed for quick clamp connections for inlet and outlet.
Stainless Steel Gas Filter Housings
FEATURES:
* Constructed of 304 and 316L low carbon stainless steel with electropolished surface for corrosion resistance.
* Particularly designed for sterilizing gases such as air, nitrogen, oxygen, carbon dioxide, helium, neon, and argon.
* Offers high flow rates up to 150 m³/min.
* Available for flange and quick clamp connections on inlet and outlet.
Stainless Steel Vent Filter Housings
FEATURES:
* Constructed of 304 stainless steel with electropolished surface for corrosion resistance.
* Specifically designed for gas venting and sterilization applications.
* In-line steam sterilizable.
