amcChemCap

amcChemCap filters are nominally rated depth filters designed to meet the flow, differential pressure, and retention requirements of a wide range of microfiltration applications. Constructed of all polypropylene components, amcChemCap filters provide broad chemical compatibility. Engineered for high particle loading applications and long filter life, the filters offer excellent filtrate purity with low extractables and fiber releasing.

amcChemCap filters are available in a variety of pore sizes from 0.2 μm, 0.45 μm, 1 μm, 3 μm, 5 μm, 10 μm, 30 μm, and 60 μm with an effective filtration area of up to 4,000 cm² for small (S) to large (L) volume of filtration. There are two upstream vents for complete venting when initiating liquid filtration.

amcChemCap filters offer the efficiency of the amcPolyproFlow cartridges in the self contained filtration device, ideal for point-of-use applications and relatively small volume batch filtration.

Performance Advantages

Specifically selected long filament polypropylene fabrics pleated and assembled for extended filter life and high throughput
Provides broad chemical resistance to serve for stringent filtration conditions
Use of thermal welding technology during assembling process to eliminate the potential for extractables to be released from sealing adhesives
Sterilizable and sanitizable by most common methods
Save time and system downtime caused by frequent change-outs of string wound or tube filters
Autoclavable for multiple cycles

Typical Applications

Parenterals, ophthalmics, veterinary parenterals and sera, oral and topical medicines, water, toiletries, perfumes and colognes, shampoo, creams, lotions, ointments, mouthwashes, oils, make-up water, serum, blood fractions, tissue culture media, vaccines, liquid growth media, make-up water, fermentation additives

Materials of Construction
Housing:	Polypropylene
Filter Media:	Hydrophobic polypropylene non-woven fabric
Filter Support Material and Structural Components:	Polypropylene
Sealing Method:	Thermal bonding
Vent Plug:	Polypropylene

Overall Length (Excluding Inlet/Outlet Adapter)
amcChemCap-S:	6.4 cm (2.5 in)
amcChemCap-M:	11.2 cm (4.4 in)
amcChemCap-L:	16.0 cm (6.3 in)

Diameter
amcChemCap-S:	7.5 cm (3.0 in)
amcChemCap-M:	7.5 cm (3.0 in)
amcChemCap-L:	7.5 cm (3.0 in)

Nominal Pore Sizes	0.2, 0.45, 1, 3, 5, 10, 30, 60 μm

Typical Effective Filtration Area
amcChemCap-S	0.2, 0.45 μm: 1,800 cm² 1, 3, 5, 10 μm: 1,000 cm² 30, 60 μm: 600 cm²
amcChemCap-M	0.2, 0.45 μm: 1,800 cm² 1, 3, 5, 10 μm: 2,400 cm² 30, 60 μm: 1,500 cm²
amcChemCap-L	0.2, 0.45 μm: 3,000 cm² 1, 3, 5, 10 μm: 4,000 cm² 30, 60 μm: 2,400 cm²

Maximum Operating Temperature	60°C at 30 psi (2.1 bar) in aqueous solution

Sterilization/Sanitization Methods
Autoclave:	30 cycles, 30 minute liquid cycles at 121°C

Maximum Differential Pressure
Continuous:	60 psi (4.1 bar) at ambient temperature
Momentary:	100 psi (7.0 bar) at ambient temperature

Typical Water Flow Rate
0.2 μm:	amcChemCap-S: 10 lpm/0.1 bar amcChemCap-M: 15 lpm/0.1 bar amcChemCap-L: 25 lpm/0.1 bar
0.45 μm:	amcChemCap-S: 10 lpm/0.1 bar amcChemCap-M: 20 lpm/0.1 bar amcChemCap-L: 30 lpm/0.1 bar
1 μm:	amcChemCap-S: 15 lpm/0.1 bar amcChemCap-M: 30 lpm/0.1 bar amcChemCap-L: 55 lpm/0.1 bar
3 μm:	amcChemCap-S: 10 lpm/0.1 bar amcChemCap-M: 30 lpm/0.1 bar amcChemCap-L: 45 lpm/0.1 bar
5 μm:	amcChemCap-S: 15 lpm/0.1 bar amcChemCap-M: 30 lpm/0.1 bar amcChemCap-L: 55 lpm/0.1 bar
10 μm:	amcChemCap-S: 15 lpm/0.1 bar amcChemCap-M: 30 lpm/0.1 bar amcChemCap-L: 55 lpm/0.1 bar
30 μm:	amcChemCap-S: 10 lpm/0.1 bar amcChemCap-M: 25 lpm/0.1 bar amcChemCap-L: 40 lpm/0.1 bar
60 μm:	amcChemCap-S: 10 lpm/0.1 bar amcChemCap-M: 25 lpm/0.1 bar amcChemCap-L: 40 lpm/0.1 bar

Oxidizables	USP met after 500 mL flush after autoclave

Biosafety	Passes USP Class VI-121°C Plastic Tests

Endotoxicity	<0.5 EU/mL using Limulus Amoebocyte Lysate (LAL) test

Typical Non-Volatile Residue	amcChemCap-S: <1 mg/device amcChemCap-M: <2 mg/device amcChemCap-L: <4 mg/device

Inlet/Outlet Connections	1/4-1/2 inch stepped hose barb (S) 1/2 hose barb (H) 1/2 inch NPTM (T) 1-1/2 inch sanitary flange (F)

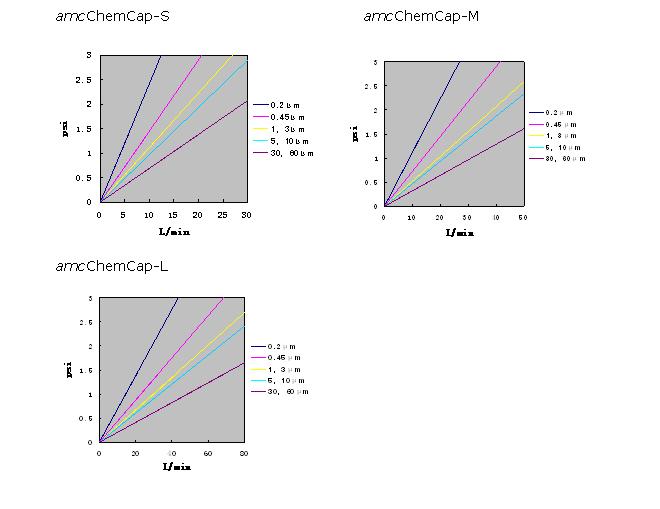

Typical Water Flow Rate

Ordering Information C H C ■ ■ ● ▼ ▲ ◆
■ Rated Pore Size	92	0.2 μm
	94	0.45 μm
	01	1 μm
	03	3 μm
	05	5 μm
	10	10 μm
	30	30 μm
	60	60 μm

● Length	S	2.5 inch (6.4 cm)
	M	4.4 inch (11.2 cm)
	L	6.3 inch (16.0 cm)

▼ Grade	0	Non-Sterile
▼ Grade	1	Sterile

▲ Inlet Connector	S	1/4-1/2 inch Stepped Hose Barb
	H	1/2 inch Hose Barb
	T	1/2 inch NPTM
	F	1-1/2 inch Sanitary Flange

◆ Outlet Connector	S	1/4-1/2 inch Stepped Hose Barb
	H	1/2 inch Hose Barb
	T	1/2 inch NPTM
	F	1-1/2 inch Sanitary Flange
