amcAccupor

amcAccupor



amcAccupor membrane is a highly microporous membrane composed of modified polyethersulfone that is a tough, durable, and temperature resistant aromatic polymer.

amcAccupor membrane provides high flow rate, low extractables, and greater mechanical strength than competitive membranes.  This membrane was specifically designed for biological, analytical, electronic, pharmaceutical, beverage, and sterilizing filtration applications.

amcAccupor membrane is available in pore sizes ranging from 0.03 μm to 5 μm.  lt is inherently hydrophilic as standard, but can be made hydrophobic upon request.



Performance Advantages

  • High flow rates and throughputs allowing faster filtration times
  • Low protein binding and high drug compatibility to maximize recovery of critical media components
  • No external wetting agents added (in hydrophili version) to avoid the introduction of unwanted extractables into your solution
  • High durability permitting repeated folding without breaking
  • High thermal stability which permits autoclave sterlization
  • Versayile sterilizability enabling sterilization by gamma radiation or Eto

Features/Benefits

  • Manufactured under cGMPs to ensure highest level of quality and consistency
  • High throughputs to minimize filter change during batch processing
  • Chemically resistant aromatic polymer menbrane to climinate problems associated with hydrolysis of the filter media during use
  • Low extractables to assure product purity

Membrane Material Modified hydrophilic polyethersulfone
Nominal Pore Sizes 0.03, 0.1, 0.2, 0.45, 0.65, 0.8, 1.2, 5.0 μm
Maximum Operating Temperature 100°C (212°F) -Water
Typical Weight 3.0 mg/cm²
Typical Thickness 0.12 mm (4.7 mils)
Extractables ≤1% - Boiling Water
Endotoxin Level <0.25 Eu/ml utilizing 400 cm²/400 ml S.W.F.I. per Limulus Amoebocyte Lysate (LAL) test
Sterilization Provided non-sterile.  May be gamma sterilizable and autoclavable if desired.
Bacterial Retention Provided Upon Request

Minimum Bubble Point
0.03 μm:   45 psi (3.2 bar) - IPA
0.1 μm: 30 psi (2.1 bar) - IPA
0.2 μm:  49 psi (3.4 bar) - Water
0.45 μm:  38 psi (2.7 bar) - Water
0.65 μm: 27 psi (1.9 bar) - Water
0.8 μm: 16 psi (1.1 bar) - Water
1.2 μm: 8 psi (0.6 bar) - Water
5 μm:             5 psi (0.4 bar) - Water

Typical Water Flow Rate (secs/100 ml H2O/9.62 cm² at 24" Hg)
0.03 μm:   ≤220
0.1 μm: ≤130
0.2 μm:  ≤30
0.45 μm:  ≤21
0.65 μm: ≤17
0.8 μm: ≤8
1.2 μm: ≤8 (secs/250 ml H2O/9.62 cm² at 24" Hg)
5 μm:             ≤25 (secs/250 ml H2O/9.62 cm² at 3" Hg)



Burst Strength
0.03 μm:   ≤20 psi
0.1 μm: ≤18 psi
0.2 μm:  ≤16 psi
0.45 μm:  ≤16 psi
0.65 μm: ≤10 psi
0.8 μm: ≤10 psi
1.2 μm: ≤8 psi
5 μm:             ≤8 psi

Biosafety Passes USP Class VI-121°C Plastics Tests, and is listed as being acceptable for food contact accoding to the Code of Federal Regulations, Title 21

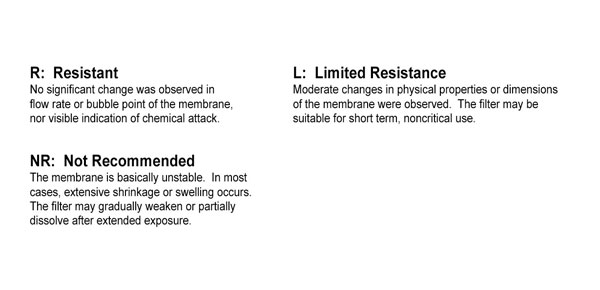

amcAccupor Chemical Compatibility
Acids Acetic acid, glacial R
Acetic acid (30%) R
Acetic acid (10%) R
Hydrochloric acid, conc. (37%) R
Hydrochloric acid, 6N (20%) R
Hydrochloric acid, 1N (3.3%) R
Nitric acid, conc. (67%) NR
Sulfuric acid, conc. (96%) NR

Alcohols Amyl alcohol NR
Benzyl alcohol NR
Butanol R
Ethanol R
Isopropanol R
Methanol R
Propanol R

Aromatic Hydrocarbons Benzene R
Toluene R
Xylene R

Bases Ammonium hydroxide, 6N (11.4%) R
Ammonium hydroxide, 3N (5.7%) R
Potassium hydroxide, 3N (15%) R
Sodium hydroxide, 6N (22%) R
Sodium hydroxide, 3N (11%) R

Esters Ethyl acetate L
Isopropyl acetate R
Methyl acetate NR

Ethers Ethyl ether R
Tetrahydrofuran NR

Glycols Ethylene glycol R
Glycerol R
Propylene glycol R

Halogenated  Hydrocarbons Carbon tetrachloride R
Chloroform NR
Ethylene dichloride NR
Freon®TF R
Methylene choride NR
Perchloroethylene L
Tetrachloroethylene R
TMC Freon ® TMC NR

Ketones Acetone NR
Cyclohexanone NR
Methyl ethyl ketone NR
Methyl isobutyl ketone R

Miscellaneous Acetonitrile R
Aniline NR
Dimethyl formamide NR
Formaldehyde, 37% R
Formaldehyde, 4% R
Gasoline R
Hexane, dry L
Kerosene R
Phenol, liquified NR
Pyridine NR
Turpentine R
Water R

Oils Cottonseed R
Peanut R

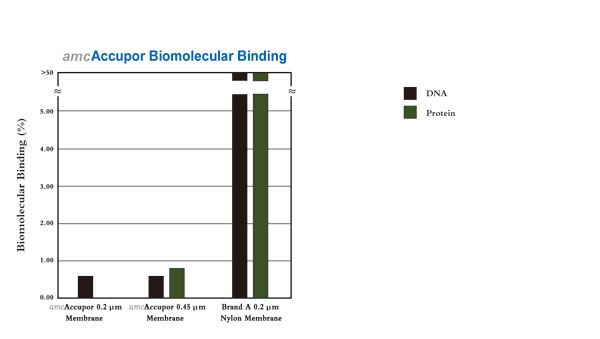

125I-Iabeled BSA (1.6 ug) or 32P-Iabeled DNA (500 ng) were diluted in PBS (BSA) to 5 ml or Tris-EDTA (DNA) and filtered through a 13 mm disc of the indicated membrane. Filtration was conducted using a 10 ml syringe at a flow rate of 1.0 ml/minute. Binding was determined by comparing the amount of radioactivity remaining in the membrane (triplicate) to the activity of the starting material by counting the disc or solution in a scintillation counter. Brand A nylon membrane is designed for biomolecular binding and was used as a positive control.

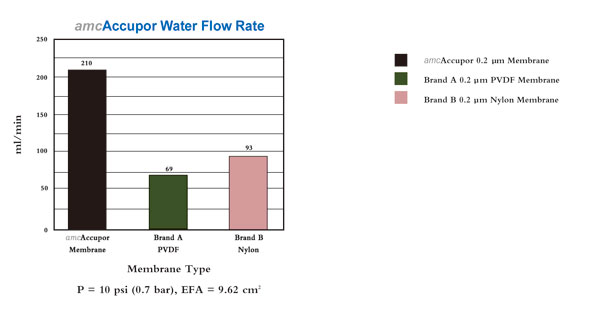

amcAccupor modified polyethersulfone membranes outperform nylon and PVDF membranes of the same pore size in terms of biomolecular binding, flow rate and total throughput.

Ordering Information
Product Number Description Packaging
AC003DA3 0.03 μm, 13 mm, diameter 100/pkg
AC003DB3 0.03 μm, 25 mm, diameter 100/pkg
AC003DC3 0.03 μm, 47 mm, diameter 100/pkg
AC003DD3 0.03 μm, 90 mm, diameter 100/pkg
AC003DD2 0.03 μm, 90 mm, diameter 50/pkg
AC003DE1 0.03 μm, 142 mm, diameter 25/pkg
AC003DF1 0.03 μm, 293 mm, diameter 25/pkg
AC010DA3 0.1 μm, 13 mm, diameter 100/pkg
AC010DB3 0.1 μm, 25 mm, diameter 100/pkg
AC010DC3 0.1 μm, 47 mm, diameter 100/pkg
AC010DD3 0.1 μm, 90 mm, diameter 100/pkg
AC010DD2 0.1 μm, 90 mm, diameter 50/pkg
AC010DE1 0.1 μm, 142 mm, diameter 25/pkg
AC010DF1 0.1 μm, 293 mm, diameter 25/pkg
AC020DA3 0.2 μm, 13 mm, diameter 100/pkg
AC020DB3 0.2 μm, 25 mm, diameter 100/pkg
AC020DC3 0.2 μm, 47 mm, diameter 100/pkg
AC020DD3 0.2 μm, 90 mm, diameter 100/pkg
AC020DD2 0.2 μm, 90 mm, diameter 50/pkg
AC020DE1 0.2 μm, 142 mm, diameter 25/pkg
AC020DF1 0.2 μm, 293 mm, diameter 25/pkg
AC045DA3 0.45 μm, 13 mm, diameter 100/pkg
AC045DB3 0.45 μm, 25 mm, diameter 100/pkg
AC045DC3 0.45 μm, 47 mm, diameter 100/pkg
AC045DD3 0.45 μm, 90 mm, diameter 100/pkg
AC045DD2 0.45 μm, 90 mm, diameter 50/pkg
AC045DE1 0.45 μm, 142 mm, diameter 25/pkg
AC045DF1 0.45 μm, 293 mm, diameter 25/pkg
AC065DA3 0.65 μm, 13 mm, diameter 100/pkg
AC065DB3 0.65 μm, 25 mm, diameter 100/pkg
AC065DC3 0.65 μm, 47 mm, diameter 100/pkg
AC065DD3 0.65 μm, 90 mm, diameter 100/pkg
AC065DD2 0.65 μm, 90 mm, diameter 50/pkg
AC065DE1 0.65 μm, 142 mm, diameter 25/pkg
AC065DF1 0.65 μm, 293 mm, diameter 25/pkg
AC080DA3 0.8 μm, 13 mm, diameter 100/pkg
AC080DB3 0.8 μm, 25 mm, diameter 100/pkg
AC080DC3 0.8  μm, 47 mm, diameter 100/pkg
AC080DD3 0.8   m, 90 mm, diameter 100/pkg
AC080DD2 0.8 μm, 90 mm, diameter 50/pkg
AC080DE1 0.8 μm, 142 mm, diameter 25/pkg
AC080DF1 0.8 μm, 293 mm, diameter 25/pkg
AC003R01 0.03 μm, 50~200 m, linear length 1/pkg
AC010R01 0.1 μm, 50~200 m, linear length 1/pkg
AC020R01 0.2 μm, 50~200 m, linear length 1/pkg
AC045R01 0.45 μm, 50~200 m, linear length 1/pkg
AC065R01 0.65 μm, 50~200 m, linear length 1/pkg
AC080R01 0.8 μm, 50~200 m, linear length 1/pkg
AC120R01 1.2 μm, 50~200 m, linear length 1/pkg
AC500R01 5 μm, 50~200 m, linear length 1/pkg
