amcFilterCap

amcFilterCap capsule filters are compact disposable filters specifically designed, constructed, and tested to provide reliable, consistent retention. They incorporate one layer of amcAccupor membrane (hydrophilic polyethersulfone membrane) whose special unobstructed flow properties and sharp particle cut-off result in high flow rate and throughput. These filters last longer and retain more contaminants than other disposable filters made with other membranes.

amcFilterCap filters are available in a variety of pore sizes from 0.1 μm, 0.2 μm, 0.45 μm, 0.65 μm, 0.8 μm, to 1.2 μm and four sizes: amcFilterCap-S, amcFilterCap-M, amcFilterCap-L and amcFilterCap-J with effective filtration areas of 900 cm², 2,200 cm², 3,400 cm² and 4,000 cm² respectively, for small to large filtration volumes. There are two upstream vents for complete venting when initiating liquid filtration.

amcFilterCap filters consist of only two materials, polyethersulfone and polypropylene, offering a high degree of cleanliness and low extractables. Unlike cartridge filters requiring the housing to fit in, amcFilterCap filters gives the efficiency of amcHydroFlow cartridges in a self contained filtration device, ideal for point-of-use applications and small volume batch filtration.

Performance Advantages

Hydrophilic amcAccupor polyethersulfone membrane offers superior flow rates, cleanliness, and throughput
Provides excellent resistance to sanitizing agents such as hot water, concentrated hydrogen peroxide, and active chlorine components
100% integrity tested on filter element to ensure optimal quality product
Use of thermal welding technology during assembling process to eliminate the potential for extractables to be released from sealing adhesives
Compact size of filter allows filtration within confined areas and minimizes storage space requirements Sterilized with gamma irradiation (upon requested) eliminates potential for contamination by cytotoxic EtO residuals; ready to use

Typical Applications

Parenterals, ophthalmics, oral and topical medicines, serum, tissue culture media, wash and rinse water, diagnostic reagents, buffers, vaccines, bottle and vial washers, dry compressed gases, make-up water

Materials of Construction
Filter Media:	Single layer of amcAccupor hydrophilic polyethersulfone membrane
Filter Support Material and structural Components:	Polypropylene
Housing:	Polypropylene
Sealing Method:	Thermal bonding
Vent Plug:	Polypropylene

Overall Length (Excluding Inlet/Outlet Adapter)
amcFilterCap-S:	6.4 cm (2.5 in)
amcFilterCap-M:	11.2 cm (4.4 in)
amcFilterCap-L:	16.0 cm (6.3 in)
amcFilterCap-J:	14.2 cm (5.6 in)

Diameter
amcFilterCap-S:	7.5 cm (3.0 in)
amcFilterCap-M:	7.5 cm (3.0 in)
amcFilterCap-L:	7.5 cm (3.0 in)
amcFilterCap-J:	9.5 cm (3.7 in)

Nominal Pore Size	0.1, 0.2, 0.45, 0.65, 0.8, 1.2 μm

Typical Effective Filtration Area
amcFilterCap-S:	900 cm²
amcFilterCap-M:	2,200 cm²
amcFilterCap-L:	3,400 cm²
amcFilterCap-J:	4,000 cm²

Maximum Operating Temperature60°C at 30 psi (2.1 bar) in aqueous solution

Sterilization/Sanitization Methods
Autoclave:	Multiple 30 minute liquid cycles at 121°C for non-gamma resistant grade.
Irradiation:	Sterilized by gamma irradiation. If desired, autoclave once only at 121 °C for 20 minutes for gamma resistant grade.

Maximum Differential Pressure
Continuous:	60 psi (4.1 bar) at ambient temperature
Momentary:	100 psi (7.0 bar) at ambient temperature

Minimum Water Bubble Point
0.1 μm:	≥28 psi (2.0 bar) in ethanol
0.2 μm:	≥49 psi (3.4 bar)
0.45 μm:	≥32 psi (2.3 bar)
0.65 μm:	≥22 psi (1.5 bar)
0.8 μm:	≥12 psi (0.8 bar)
1.2 μm:	≥6 psi (0.4 bar)

Typical Water Flow Rate
	0.1 μm:	amcFilterCap-S:	0.4 lpm/psi (0.7 lpm/0.1 bar)
		amcFilterCap-M:	0.8 lpm/psi (1.3 lpm/0.1 bar)
		amcFilterCap-L:	1.2 lpm/psi (1.8 lpm/0.1 bar)
		amcFilterCap-J:	2.6 lpm/psi (3.8 lpm/0.1 bar)
	0.2 μm:	amcFilterCap-S:	1.2 lpm/psi (1.6 lpm/0.1 bar)
		amcFilterCap-M:	2.4 lpm/psi (3.5 lpm/0.1 bar)
		amcFilterCap-L:	3.6 lpm/psi (5.3 lpm/0.1 bar)
		amcFilterCap-J:	7.0 lpm/psi (10.0 lpm/0.1 bar)
	0.45 μm:	amcFilterCap-S:	2.1 lpm/psi (3.1 lpm/0.1 bar)
		amcFilterCap-M:	4.2 lpm/psi (6.3 lpm/0.1 bar)
		amcFilterCap-L:	6.6 lpm/psi (10.0 lpm/0.1 bar)
		amcFilterCap-J:	12.3 lpm/psi (17.6 lpm/0.1 bar)
	0.65 μm:	amcFilterCap-S:	2.7 lpm/psi (4.2 lpm/0.1 bar)
		amcFilterCap-M:	5.2 lpm/psi (8.4 lpm/0.1 bar)
		amcFilterCap-L:	9.0 lpm/psi (13.7 lpm/0.1 bar)
		amcFilterCap-J:	15.4 lpm/psi (22.0 lpm/0.1 bar)
	0.8μm:	amcFilterCap-S:	3.9 lpm/psi (5.9 lpm/0.1 bar)
		amcFilterCap-M:	8.0 lpm/psi (10.7 lpm/0.1 bar)
		amcFilterCap-L:	12.5 lpm/psi (18.7 lpm/0.1 bar)
		amcFilterCap-J:	23.2 lpm/psi (33.0 lpm/0.1 bar)
	1.2 μm:	amcFilterCap-S:	8.5 lpm/psi (12.8 lpm/0.1 bar)
		amcFilterCap-M:	17.4 lpm/psi (26.2 lpm/0.1 bar)
		amcFilterCap-L:	26.7 lpm/psi (40.0 lpm/0.1 bar)
		amcFilterCap-J:	31.0 lpm/psi (44.0 lpm/0.1 bar)

Oxidizable Substances	Filtrate meets USP XXII requirements for purified water with <500 mL flush after autoclaving

Biosafety	All components meet USP Class VI-121°C Plastic Tests

Endotoxin Level	< 0.25 EU/mL using Limulus Amoebocyte Lysate (LAL) test

Typical Non-Volatile Residue
amcFilterCap-S:	<2 mg/device
amcFilterCap-M:	<4 mg/device
amcFilterCap-L:	<8 mg/device
amcFilterCap-J:	<10 mg/device

Inlet/Outlet Connections	1/4-1/2 inch stepped hose barb (S) 1/2 hose barb (H) 1/2 inch NPTM (T) 1-1/2 inch Sanitary Flange (F) * For “J” type, only 3/4 inch NPTM available

Bacterial Retention	For more information, please contact us

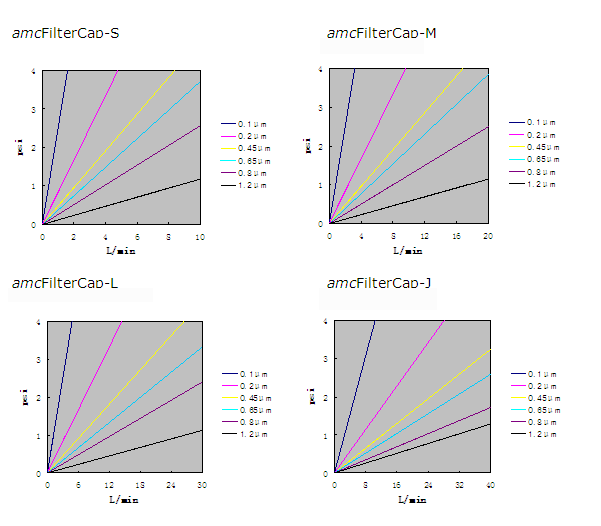

Typical Water Flow Rate

Ordering Information F C C ■ ■ ● ▼ ▲ ◆
■ Rated Pore Size	10	0.1 μm
	20	0.2 μm
	45	0.45 μm
	65	0.65 μm
	80	0.8 μm
	12	1.2μm

● Length	S	2.5 inch (6.4 cm)
	M	4.4 inch (11.2 cm)
	L	6.3 inch (16.0 cm)
	J	5.6 inch (14.2 cm)

▼ Grade	0	Non-Sterile
▼ Grade	1	Sterile

▲ Inlet Connector	S	1/4-1/2 inch Stepped Hose Barb
	H	1/2 inch Hose Barb
	T	1/2 inch NPTM
	F	1-1/2 inch Sanitary Flange
	Q	Quick Connect Hose Nipple
	N	3/4 inch NPTM (only for “J” type)

◆ Outlet Connector*	S	1/4-1/2 inch Stepped Hose Barb
	H	1/2 inch Hose Barb
	T	1/2 inch NPTM
	F	1-1/2 inch Sanitary Flange
	N	3/4 inch NPTM (only for “J” type)
