amcAccuCap

amcAccuCap capsule filters are specifically designed using advanced filtration technology.  They incorporate serial layers of amcAccupor membrane (hydrophilic polyethersulfone membrane) to provide high throughputs and particle retention.  All product components are fusion-welded to ensure lower extractables.

amcAccuCap filters are available in 3 pore sizes: 0.1 μm, 0.2 μm, and 0.45 μm.  Four sizes of amcAccuCap are available: amcAccuCap-S is recommended for filtration of liquids up to 50 liters of most solutions, amcAccuCap-M is recommended for solutions up to 100 liters, amcAccuCap-L is recommended for filtering up to 150 liters of most solutions, and amcAccuCap-J is recommended for filtration up to 300 liters.

amcAccuCap filters contain up to 40% more effective filtration area than other capsule filters on the market.  This product offers the efficiency of amcAccuFlow cartridges in a self contained filtration device being ideal for point-of-use applications and small to medium volume batch filtration.



Performance Advantages

  • Hydrophilic amcAccupor polyethersulfone membrane offers outstanding particle retention while maintaining high flow rates
  • Provides excellent resistance to severe sanitizing agents
  • A variety of inlet/outlet configurations allow easy installation into existing filtration systems
  • Use of thermal welding technology during assembling process eliminates the potential for extractables to be released from sealing adhesives
  • Sterilized with gamma irradiation (upon requested) eliminates potential for contamination by cytotoxic EtO residuals; ready to use

Typical Applications

  • Parenterals, ophthalmics, oral and topical medicines, serum, tissue culture media, wash and rinse water, diagnostic reagents, buffers, vaccines, bottle and vial washers, dry compressed gases, make-up water

Materials of Construction
Filter Media: Serial layers of amcAccupor hydrophilic polyethersulfone membrane
Support Material: Polypropylene
Housing: Polypropylene
Sealing Method: Thermal bonding
Vent Plug: Polypropylene

Overall Length (Excluding Inlet/Outlet Adapter) amcAccuCap-S: 6.4 cm (2.5 in)
amcAccuCap-M: 11.2 cm (4.4 in)
amcAccuCap-L: 16.0 cm (6.3 in)
amcAccuCap-J: 14.2 cm (5.6 in)

Diameter amcAccuCap-S: 7.5 cm (3.0 in)
amcAccuCap-M: 7.5 cm (3.0 in)
amcAccuCap-L: 7.5 cm (3.0 in)
amcAccuCap-J: 9.5 cm (3.7 in)

Nominal Pore Sizes 0.1, 0.2, 0.45 μm

Typical Effective Filtration Area amcAccuCap-S: 570 cm²
amcAccuCap-M: 1,300 cm²
amcAccuCap-L: 2,100 cm²
amcAccuCap-J: 2,400 cm²

Maximum Operating Temperature 60°C (140°F) at 30 psi (2.1 bar) in aqueous solution

Sterilization/Sanitization Methods
Autoclave: Multiple 30 minute liquid cycles at 121°C for non-gamma resistant grade.
Irradiation: Sterilized by gamma irradiation.  If desired, autoclave once only at 121°C for 20 minutes for gamma resistant grade.

Maximum Differential Pressure Continuous: 60 psi (4.1 bar) at ambient temperature
Momentary: 100 psi (7.0 bar) at ambient temperature

Minimum Water Bubble Point 0.1 μm: 28 psi (2.0 bar) in ethanol
0.2 μm: 49 psi (3.4 bar)
0.45 μm: 32 psi (2.3 bar)

Typical Water Flow Rate

0.1 μm: amcAccuCap-S: 0.3 lpm/psi (0.5 lpm/0.1 bar)
amcAccuCap-M: 0.6 lpm/psi (0.9 lpm/0.1 bar)
amcAccuCap-L: 0.8 lpm/psi (1.2 lpm/0.1 bar)
amcAccuCap-J: 1.0 lpm/psi (1.5 lpm/0.1 bar)
0.2 μm: amcAccuCap-S: 0.9 lpm/psi (1.3 lpm/0.1 bar)
amcAccuCap-M: 1.7 lpm/psi (2.5 lpm/0.1 bar)
amcAccuCap-L: 2.4 lpm/psi (3.5 lpm/0.1 bar)
amcAccuCap-J: 2.7 lpm/psi (4.0 lpm/0.1 bar)
0.45 μm: amcAccuCap-S: 1.6 lpm/psi (2.4 lpm/0.1 bar)
amcAccuCap-M: 3.0 lpm/psi (4.5 lpm/0.1 bar)
amcAccuCap-L: 4.4 lpm/psi (6.6 lpm/0.1 bar)
amcAccuCap-J: 5.0 lpm/psi (7.5 lpm/0.1 bar)

Oxidizable Substances Filtrate meets USP XXII requirements for purified water with <500 mL flush after autoclaving

Biosafety All components meet USP Class VI-121°C Plastic Tests

Endotoxin Level <0.25 EU/mL using Limulus Amoebocyte Lysate (LAL) test

Typical Non-Volatile Residue amcAccuCap-S: <2 mg/device
amcAccuCap-M: <4 mg/device
amcAccuCap-L: <8 mg/device
amcAccuCap-J: <10 mg/device

Inlet/Outlet Connections 1/4-1/2 inch stepped hose barb (S)
1/2 hose barb (H)
1/2 inch NPTM (T)
1-1/2 inch Sanitary Flange (F)
* For “J” type, only 3/4 inch NPTM available

Bacterial Retention Provided Upon Request

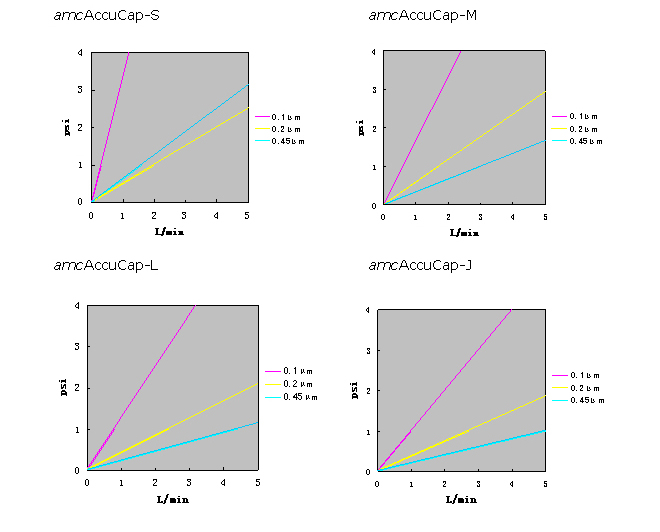

Typical Water Flow Rate

Ordering Information

 A C C ■ ■ ● ▼ ▲ ◆

■ Rated Pore Size 10 0.1 μm
20 0.2 μm
45 0.45 μm

● Length S 2.5 inch (6.4 cm)
M 4.4 inch (11.2 cm)
L 6.3 inch (16.0 cm)
J 5.6 inch (14.2 cm)

▼ Grade 0 Non-Sterile
1 Sterile

▲ Inlet Connector S 1/4-1/2 inch Stepped Hose Barb
H 1/2 inch Hose Barb
T 1/2 inch NPTM
F 1-1/2 inch Sanitary Flange
Q Quick Connect Hose Nipple
N* 3/4 inch NPTM (only for “J” type)

◆ Outlet Connector S 1/4-1/2 inch Stepped Hose Barb
H 1/2 inch Hose Barb
T 1/2 inch NPTM
N 3/4 inch NPTM
F 1-1/2 inch Sanitary Flange
N* 3/4 inch NPTM (only for “J” type)

* For “J” type, only 3/4 inch NPTM available
