amcCapsule

amcFilterCap E, amcPTFECap E and amcChemCap E disposable capsule filters are specifically designed for point-of-use application to meet small to mid-volume solution filtration needs.  Three filter media are available (polyethersulfone, polytetrafluoroethylene and polypropylene) and fully encapsulated in three different sizes of compact and easy-to-handle polypropylene housing shell (S, M and L). A large variety of filter selection enables the users to deal with a wide range of solvents, acids, bases, and chemicals commonly used in today’s electronics industry.

Engineered to offer high retention efficiency, high flow rate and long product life, these capsule filters contribute to a better cost performance for the users.



Performance Advantages

  • Compact design provides easy installations in a low hold up volume
  • Manufactured, tested and packaged in a clean environment to ensure product cleanliness
  • Extensive process controls for reliable and consistent lot to lot service
  • Various filter media and filter sizes are available to suit all filtration needs

Typical Applications

  • Small batch blending of various solutions
  • Point-of use filtrations of various solutions
  • Tank vents
  • DI resin trap

Materials of Construction
Filter Media: amcFilterCap E: Pleated single layer of hydrophilic polyethersulfone
amcChemCap E: Pleated multiple layers of hydrophobic melt blown     polypropylene
amcPTFECap E: Pleated single layer of unsupported hydrophobic             polytetrafluoroethylene
Support Material: Polypropylene
Structure Components: Polypropylene
Sealing Technology: Thermal bonding

Dimensions
Nominal Length: S: 2.5 inch (6.4 cm)
M: 4.4 inch (11.2 cm)
L: 6.3 inch (16.0 cm)
Diameter: 75 mm

Nominal Pore Sizes amcFilterCap E: 0.03, 0.1, 0.2, 0.45, 1.2 μm
amcChemCap E: 0.2, 0.45, 1, 3, 5, 10, 30, 60 μm
amcPTFECap E: 0.05, 0.1, 0.2, 0.45,1,5 μm








Typical Effective Filtration Area
amcFilterCap E-S: 1,000 cm²
amcFilterCap E-M: 2,400 cm²
amcFilterCap E-L: 3,700 cm²

amcPTFECap E-S: 1,050 cm²
amcPTFECap E-M: 2,500 cm²
amcPTFECap E-L: 3,800 cm²
  amcChemCap E-S: 0.2, 0.45 μm: 880 cm²
amcChemCap E-S: 1, 3, 5, 10 μm: 1,100 cm²
amcChemCap E-S: 30, 60 μm: 650 cm²
amcChemCap E-M: 0.2, 0.45 μm: 2,000 cm²
amcChemCap E-M: 1, 3, 5, 10 μm: 2,650 cm²
amcChemCap E-M: 30, 60 μm: 1,650 cm²
amcChemCap E-L: 0.2, 0.45 μm: 3,300 cm²
amcChemCap E-L: 1, 3, 5, 10 μm: 4,400 cm²
amcChemCap E-L: 30, 60 μm: 2,650 cm²

Maximum Operating Temperature 60°C at 30 psi (2.1 bar)

Maximum Differential Pressure 60 psi (4.1 bar) at ambient temperature

Resistivity Recovery within
18 Mega-ohm
≤120 L/10 inch length (at 1 L/min flow rate)

Cleanliness
amcFilterCap E: <5 particles/mL (>0.2 µm particle after 5 minutes 18 mΩ water flush at 5 L/min flow rate)
amcPTFECap E: <10 particles/100 mL (>0.5 µm particle after 30 minutes 18 mΩ water flush at 5 L/min flow rate after alcohol wetting)

Retention Efficiency
amcFilterCap E: 0.03 µm: >99.9% (retention of 0.055 µm PSL beads)
0.1 µm: >99.999% (retention of 0.198 µm PSL beads)
0.2 µm: >99.999% (retention of 0.460 µm PSL beads)
0.45 µm: >99.9% (retention of 0.830 µm PSL beads)
1.2 µm: >99.99% (retention of 2.0 µm PSL beads)
amcChemCap E: 0.2 μm: >99% (retention of 0.3 μm AC fine dust)
0.45 μm: >99% (retention of 0.6 μm AC fine dust)
1 μm: >99% (retention of 1.5 μm AC fine dust)
3 μm: >99% (retention of 5 μm AC fine dust)
5 μm: >99% (retention of 9 μm AC fine dust)
10 μm: >99% (retention of 15 μm AC fine dust)
30 μm: >99% (retention of 40 μm AC fine dust)
60 μm: >99% (retention of 70 μm AC fine dust)

Inlet/Outlet Connections 1/4-1/2 inch stepped hose barb (S)
1/2 hose barb (H)
1/2 inch NPTM (T)
1-1/2 inch Sanitary Flange (F)

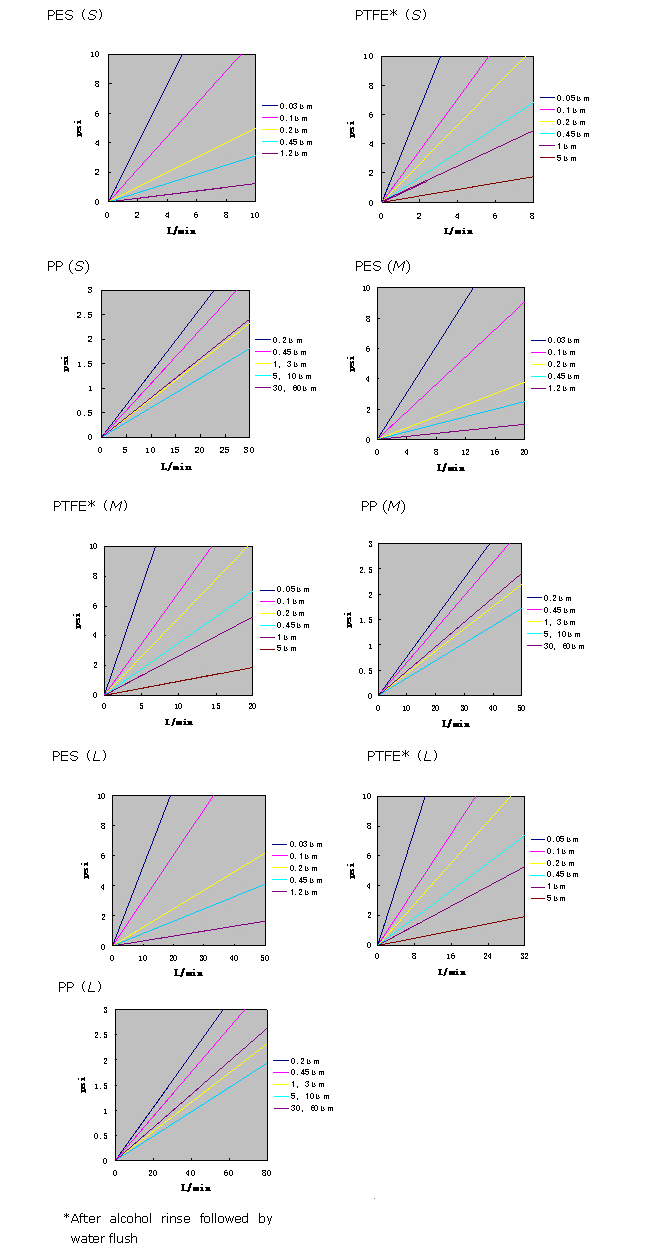

Typical Water Flow Rates:

Ordering Information

amcFilterCap EF C E ■ ■  ▲

amcChemCap EC H E ■ ■  ▲

amcPTFECap ET F E ■ ■  ▲

■ Rated Pore Size amcFilterCap E 03 0.03 μm
  10 0.1 μm
  45 0.45 μm
  12 1.2 μm
amcChemCap E 92 0.2 μm
  94 0.45 μm
  01 1 μm
  03 3 μm
  05 5 μm
  10 10 μm
  30 30 μm
  60 60 μm
amcPTFECap E 50 0.05 μm
  10 0.1 μm
  20 0.2 μm
  45 0.45 μm
  01 1 μm
  05 5 μm

◆ Length S 2.5 inch (6.4 cm)
M 4.4 inch (11.2 cm)
L 6.3 inch (16.0 cm)

▲ Inlet Connector S 1/4-1/2 inch Stepped Hose Barb
H 1/2 inch Hose Barb
T 1/2 inch NPTM
F 1-1/2 inch Sanitary Flange

▼ Outlet Connector S 1/4-1/2 inch Stepped Hose Barb
H 1/2 inch Hose Barb
T 1/2 inch NPTM
F 1-1/2 inch Sanitary Flange
