| Materials of Construction |
| Filter Media: |
Pleated non-woven polypropylene |
| Support Material: |
Polypropylene |
| Structure Components: |
Polypropylene |
| Sealing Technology: |
Thermal bonding |
| |
| Dimensions |
| Nominal Length: |
10, 20, 30, and 40 inch (25.4, 50.8, 76.2, and 101.6 cm) |
| Diameter: |
69 mm |
| |
| Nominal Pore Sizes |
0.2, 0.45, 1, 3, 5, 10, 30, 60 µm |
| |
| Typical Effective Filtration Area |
0.2, 0.45, 30, 60 µm: 0.55 m²/10 inch
1, 3 µm: 0.65 m²/10 inch
5, 10 µm: 0.72 m²/10 inch |
| |
| Maximum Operating Temperature |
80°C at 30 psi (2.1 bar) |
| |
| Maximum Differential Pressure |
60 psi (4.1 bar) at ambient temperature |
| |
Resistivity Recovery within
18 Mega-ohm |
≤120 L/10 inch length (at 1 L/min flow rate) |
| |
| Retention Efficiency |
0.2 μm: >99% (retention of 0.3 μm AC fine dust)
0.45 μm: >99% (retention of 0.6 μm AC fine dust)
1 μm: >99% (retention of 1.5 μm AC fine dust)
3 μm: >99% (retention of 5 μm AC fine dust)
5 μm: >99% (retention of 9 μm AC fine dust)
10 μm: >99% (retention of 15 μm AC fine dust)
30 μm: >99% (retention of 40 μm AC fine dust)
60 μm: >99% (retention of 70 μm AC fine dust) |

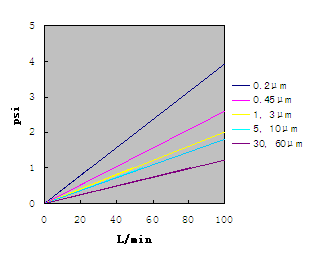

Typical Water Flow Rates (10 inch length)
