amcMultiFlow HP
-

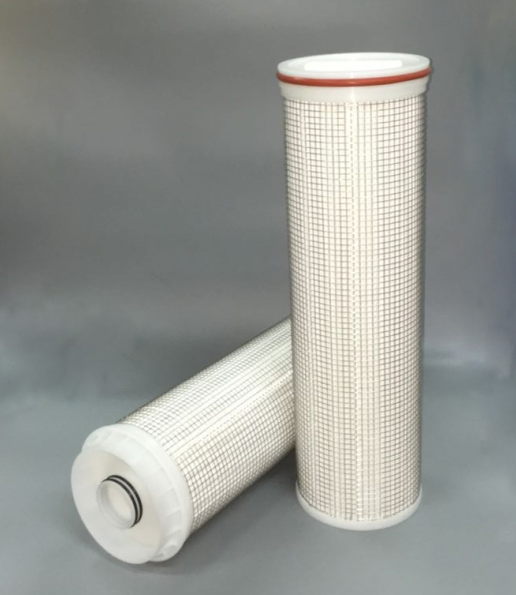

amcMultiFlow HP cartridge is a 152 mm diameter filter specifically designed for dealing with a large volume of liquid filtration. All components in the cartridge are made of high density polypropylene except the outer cage which is composed of stainless steel net. The cartridge contains pleated polypropylene nonwoven or polyethersulfone membrane as the filter media in a robust construction possessing a stainless steel outer cage for extra strength. A thermal welding technique is used to combine all components together in order to eliminate the use of adhesive to minimizing extractables during filtration. Four different configurations in lengths and adapters are available for convenient operation with either an inside-to-outside flow direction or an outside-to-inside flow direction.
Performance Advantages
- Large effective filtration area to maximize flow rate, offering long service life
- Available in four different lengths: 20”, 40”, 60”, and 80”, and inside-to-outside or outside-to-inside flow direction
- Stainless steel netting used for outer cage to provide extra strength
- A choice of either polypropylene nonwoven or polyethersulfone membrane filter media for different applications
- Manufactured using ISO quality standards to ensure product consistency and reproducible performance
| Materials of Construction |
| Filter Media: |
amcMultiFlow HP/PF: Pleated multiple layers of non-woven plypropylene amcMultiFlow HP/AC: Pleated single layer of hydrophilic polyethersulfone |
| Support Material: |
Polypropylene |
| Structure Components: |
Stainless Steel/Polypropylene |
| Sealing Technology: |
Thermal bonding |
| |
| Dimensions |
| Nominal Length: |
20, 40, 60, 80 inch
(50.8, 101.6, 152.4, 203.2 cm) |
| Diameter: |
152 mm |
| |
| Nominal Pore Sizes |
1, 3, 5, 10, 30, 60, 100 μm |
| |
| Maximum Operating Temperature |
60℃ (140℉) |
| |
| Maximum Differential Pressure |
60 psi (4.1 bar) at ambient temperature |
|
Ordering Information
amcMultiFlow HP/PF: M U F ■ ■ H ◆ ● ▲
amcMultiFlow HP/AC: M U C ■ ■ H ◆ ● ▲
|
| ■ Rated Pore Size |
01 |
1 μm |
| 03 |
3 μm |
| 05 |
5 μm |
| 10 |
10 μm |
| 30 |
30 μm |
| 60 |
60 μm |
| 00 |
100 μm |
| |
| ◆ Nominal Length |
2 |
20 inch (50.8 cm) |
| 4 |
40 inch (101.6 cm) |
| 6 |
60 inch (152.4 cm) |
| 8 |
80 inch (76.2203.2cm) |
| |
| ● Configuration |
HM1－Outside-to-inside, |
Outlet diameter DIN50 |
| HM2－Outside-to-inside, |
Outlet diameter DIN80 |
| TP1－Inside-to-outside, |
U-Cup |
| TP2－Inside-to-outside, |
O-Cup |
| |
| ▲ Seal Material |
S |
Silicone |
| V |
Viton |
| E |
Ethylene Propylene |
| F |
FEP Encapsulated |
| |
