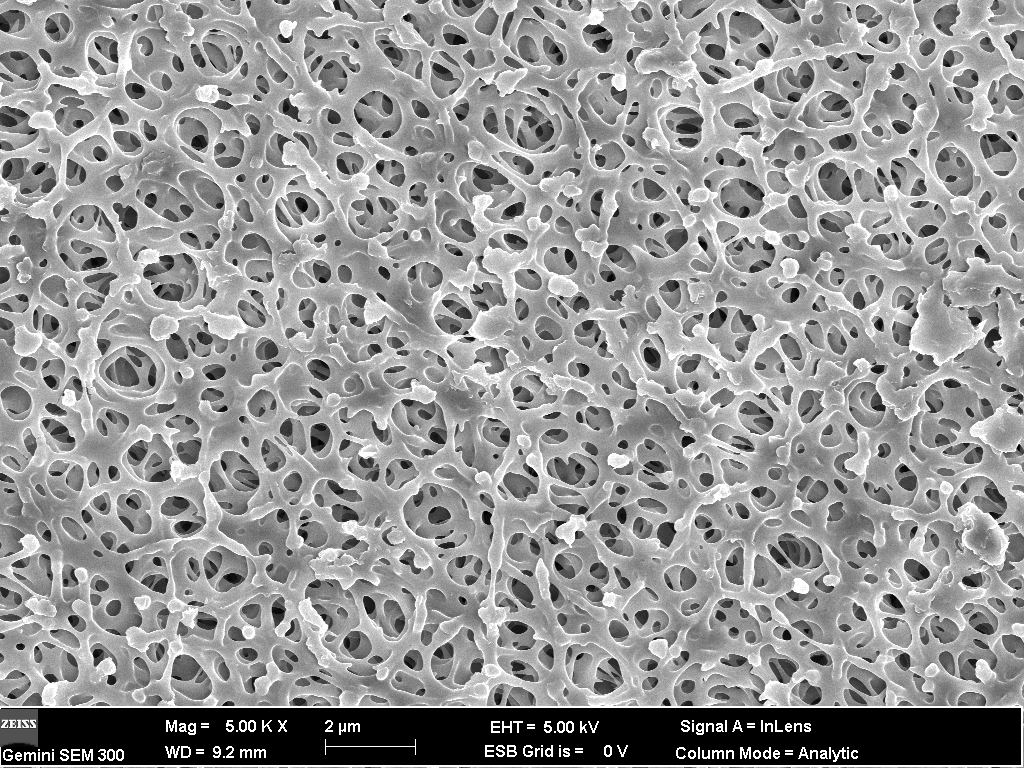

 Typical 0.2 μm Dull Side (A-Side)

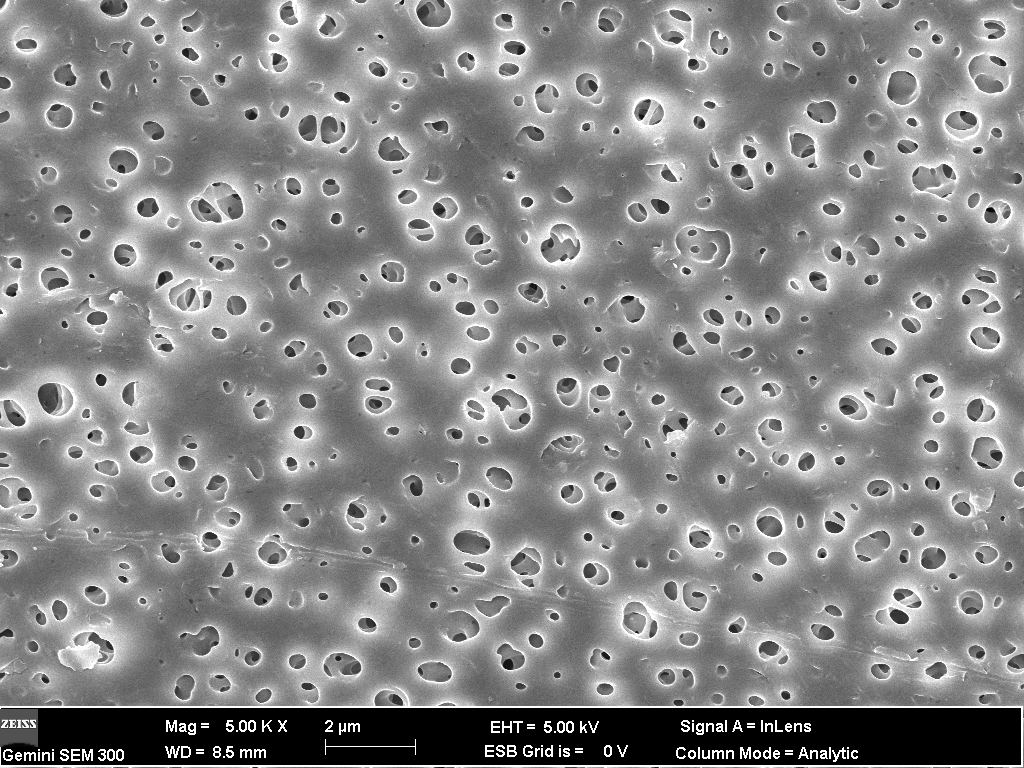

Typical 0.2 μm Shinny Side (B-Side)



amcAccupor AS membrane is a microporous membrane made of modified polyethersulfone.  It is manufactured using a proprietary procedure to create a highly asymmetric structure through the depth of membrane.

amcAccupor AS membrane is inherently hydrophilic and provides high flow rate, low extractables, and great mechanical strength.  It is suitable for electronic, pharmaceutical, food/beverage, and other filtration applications.

amcAccupor AS membrane is available in 0.02 µm, 0.03 µm, 0.1 µm, 0.2 µm, 0.45 µm, 0.65 µm, and 0.8 µm pore size and in a roll form typically at 10-inch width format, and at 20-inch width format under special request.



Performance Advantages

  • High flow rates and throughputs allowing faster filtration times
  • Low protein binding and high drug compatibility to maximize recovery of critical media components
  • No external wetting agents added to avoid the introduction of unwanted extractables into your solution
  • High durability permitting repeated folding without breaking
  • High thermal stability which permits autoclave sterlization
  • Versayile sterilizability enabling sterilization by gamma radiation or Eto

Features/Benefits

  • Manufactured under stringent conditions  to ensure highest level of quality and consistency
  • High throughputs to minimize filter change during batch processing
  • Chemically resistant aromatic polymer menbrane to eliminate problems associated with hydrolysis of the filter media during use
  • Low extractables to assure product purity

Membrane Material Highly asymmetric hydrophilic polyethersulfone
Nominal Pore Sizes 0.02, 0.03, 0.1, 0.2, 0.45, 0.65,  0.8 μm
Maximum Operating Temperature 100°C (212°F) -Water
Typical Weight 3.0 mg/cm²
Typical Thickness 0.12 mm (4.7 mils)
Extractables ≤1% - Boiling Water
Endotoxin Level <0.25 Eu/ml utilizing 400 cm²/400 ml S.W.F.I. per Limulus Amoebocyte Lysate (LAL) test
Sterilization Provided non-sterile.  Can be gamma sterilizable and autoclavable if desired.
Bacterial Retention Provided Upon Request

Minimum Bubble Point
0.02 μm:   63 psi (4.3 bar) - 60/40 IPA/Water
0.03 μm: 48 psi (3.3 bar) - 60/40 IPA/Water
0.1 μm: 35 psi (2.4 bar) - 60/40 IPA/Water
0.2 μm:  49 psi (3.4 bar) - Water
0.45 μm:  38 psi (2.6 bar) - Water
0.65 μm: 26 psi (1.8 bar) - Water
0.8 μm: 16 psi (1.1 bar) - Water

Typical Water Flow Rate (secs/100 ml H2O/9.62 cm² at 24" Hg)
0.02 μm:   ≤250
0.03 μm: ≤180
0.1 μm: ≤80
0.2 μm:  ≤22
0.45 μm:  ≤13
0.65 μm: ≤9
0.8 μm: ≤9 (secs/250 ml H2O/9.62 cm² at 24" Hg)


Burst Strength
0.02 μm:   ≤20 psi
0.03 μm: ≤20 psi
0.1 μm: ≤18 psi
0.2 μm:  ≤16 psi
0.45 μm:  ≤16 psi
0.65 μm: ≤10 psi
0.8 μm: ≤10 psi

Biosafety Passes USP Class VI-121°C Plastics Tests, and is listed as being acceptable for food contact accoding to the Code of Federal Regulations, Title 21

amcAccupor Chemical Compatibility
Acids Acetic acid, glacial R
Acetic acid (30%) R
Acetic acid (10%) R
Hydrochloric acid, conc. (37%) R
Hydrochloric acid, 6N (20%) R
Hydrochloric acid, 1N (3.3%) R
Nitric acid, conc. (67%) NR
Sulfuric acid, conc. (96%) NR

Alcohols Amyl alcohol NR
Benzyl alcohol NR
Butanol R
Ethanol R
Isopropanol R
Methanol R
Propanol R

Aromatic Hydrocarbons Benzene R
Toluene R
Xylene R

Bases Ammonium hydroxide, 6N (11.4%) R
Ammonium hydroxide, 3N (5.7%) R
Potassium hydroxide, 3N (15%) R
Sodium hydroxide, 6N (22%) R
Sodium hydroxide, 3N (11%) R

Esters Ethyl acetate L
Isopropyl acetate R
Methyl acetate NR

Ethers Ethyl ether R
Tetrahydrofuran NR

Glycols Ethylene glycol R
Glycerol R
Propylene glycol R

Halogenated  Hydrocarbons Carbon tetrachloride R
Chloroform NR
Ethylene dichloride NR
Freon®TF R
Methylene choride NR
Perchloroethylene L
Tetrachloroethylene R
TMC Freon ® TMC NR

Ketones Acetone NR
Cyclohexanone NR
Methyl ethyl ketone NR
Methyl isobutyl ketone R

Miscellaneous Acetonitrile R
Aniline NR
Dimethyl formamide NR
Formaldehyde, 37% R
Formaldehyde, 4% R
Gasoline R
Hexane, dry L
Kerosene R
Phenol, liquified NR
Pyridine NR
Turpentine R
Water R

Oils Cottonseed R
Peanut R



Ordering Information
Product Number Description Packaging
AS003DA3 0.03 μm, 13 mm, diameter 100/pkg
AS003DB3 0.03 μm, 25 mm, diameter 100/pkg
AS003DC3 0.03 μm, 47 mm, diameter 100/pkg
AS003DD3 0.03 μm, 90 mm, diameter 100/pkg
AS003DD2 0.03 μm, 90 mm, diameter 50/pkg
AS003DE1 0.03 μm, 142 mm, diameter 25/pkg
AS003DF1 0.03 μm, 293 mm, diameter 25/pkg
AS010DA3 0.1 μm, 13 mm, diameter 100/pkg
AS010DB3 0.1 μm, 25 mm, diameter 100/pkg
AS010DC3 0.1 μm, 47 mm, diameter 100/pkg
AS010DD3 0.1 μm, 90 mm, diameter 100/pkg
AS010DD2 0.1 μm, 90 mm, diameter 50/pkg
AS010DE1 0.1 μm, 142 mm, diameter 25/pkg
AS010DF1 0.1 μm, 293 mm, diameter 25/pkg
AS020DA3 0.2 μm, 13 mm, diameter 100/pkg
AS020DB3 0.2 μm, 25 mm, diameter 100/pkg
AS020DC3 0.2 μm, 47 mm, diameter 100/pkg
AS020DD3 0.2 μm, 90 mm, diameter 100/pkg
AS020DD2 0.2 μm, 90 mm, diameter 50/pkg
AS020DE1 0.2 μm, 142 mm, diameter 25/pkg
AS020DF1 0.2 μm, 293 mm, diameter 25/pkg
AS045DA3 0.45 μm, 13 mm, diameter 100/pkg
AS045DB3 0.45 μm, 25 mm, diameter 100/pkg
AS045DC3 0.45 μm, 47 mm, diameter 100/pkg
AS045DD3 0.45 μm, 90 mm, diameter 100/pkg
AS045DD2 0.45 μm, 90 mm, diameter 50/pkg
AS045DE1 0.45 μm, 142 mm, diameter 25/pkg
AS045DF1 0.45 μm, 293 mm, diameter 25/pkg
AS065DA3 0.65 μm, 13 mm, diameter 100/pkg
AS065DB3 0.65 μm, 25 mm, diameter 100/pkg
AS065DC3 0.65 μm, 47 mm, diameter 100/pkg
AS065DD3 0.65 μm, 90 mm, diameter 100/pkg
AS065DD2 0.65 μm, 90 mm, diameter 50/pkg
AS065DE1 0.65 μm, 142 mm, diameter 25/pkg
AS065DF1 0.65 μm, 293 mm, diameter 25/pkg
AS080DA3 0.8 μm, 13 mm, diameter 100/pkg
AS080DB3 0.8 μm, 25 mm, diameter 100/pkg
AS080DC3 0.8  μm, 47 mm, diameter 100/pkg
AS080DD3 0.8   m, 90 mm, diameter 100/pkg
AS080DD2 0.8 μm, 90 mm, diameter 50/pkg
AS080DE1 0.8 μm, 142 mm, diameter 25/pkg
AS080DF1 0.8 μm, 293 mm, diameter 25/pkg
AS002R01 0.02 μm, 50~200 m, linear length 1/pkg
AS003R01 0.03 μm, 50~200 m, linear length 1/pkg
AS010R01 0.1 μm, 50~200 m, linear length 1/pkg
AS020R01 0.2 μm, 50~200 m, linear length 1/pkg
AS045R01 0.45 μm, 50~200 m, linear length 1/pkg
AS065R01 0.65 μm, 50~200 m, linear length 1/pkg
AS080R01 0.8 μm, 50~200 m, linear length 1/pkg
